Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry

Détails sur le produit:

Lieu d'origine:	CHINE
Nom de marque:	IONPURE
Certification:	CE
Numéro de modèle:	Ip-lxm24z-5
Documents:	fgwater-ionpure-lxz-ds.pdf

Conditions de paiement et expédition:

Quantité de commande min:	1 pc
Prix:	Négociable
Détails d'emballage:	Emballage d'exportation standard
Délai de livraison:	5- 8 jours de travail
Conditions de paiement:	T / T, Western Union
Capacité d'approvisionnement:	60000 unités par mois

Contact

Tous les produits

boîte de distribution d'éclairage (33)

boîte de distribution électrique (33)

Boîte de distribution imperméable (48)

Boîte de clôture de fibre de verre (60)

Commutateur automatique de transfert d'ATS (68)

Modules EDI (139)

Modules à membrane à ultrafiltration (62)

disjoncteur industriel (85)

système solaire de picovolte (72)

Station de charge électrique d'EV (21)

Relais modulaires de synchronisation (12)

Relais de contrôle d'automation (64)

Transformateur de régulateur de tension (16)

Ballons d'éclairage de film (136)

Lumière de ballon de lune (131)

Ballons du trépied LED (115)

Tour légère gonflable (62)

Accessoires de TB (6)

Description de produit détaillée

24z-5 pile Débit minimum M3 / HR (GPM):	1,36 (6.0)	24Z-5 Débit de conception de pile M3 / HR (GPM):	2.8-4.2 (12.5-18.8)
24Z-5 Stack Exhibing Weight Kg (lbs) **:	115 (254)	24z-5 pile de temps de fonctionnement kg (lb):	92 (103)
Récupération de pile 24Z-5:	90–95%	Avantages de pile:	Large gamme de flux,faibles coûts d'exploitation, fournissant une eau de haute pureté stable et fiab
Voltage en courant continu de pile:	0–400	Ampérage en courant continu:	1.0–6.0
application du produit:	Industrie biopharmaceutique

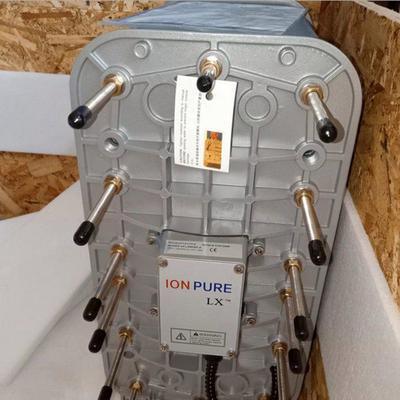

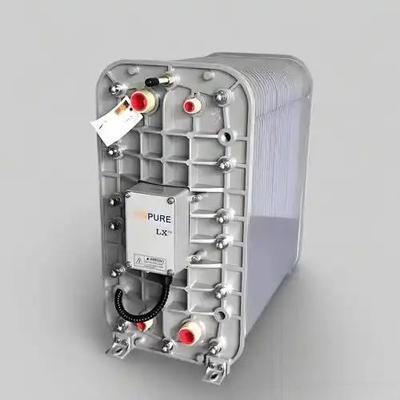

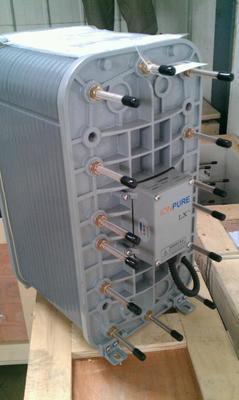

Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
The Ionpure IP-LXM24Z-5 CEDI module delivers reliable, chemical-free ultrapure water production for industrial applications. With consistent output quality (up to 18 MΩ·cm) and minimal wastewater generation, this system is ideal for pharmaceutical manufacturing, microelectronics production, and laboratory water systems. The compact design features simplified maintenance and easy integration into existing water treatment workflows, significantly reducing operational costs compared to traditional ion exchange systems.

Product Overview

The Ionpure LX-Z is an industrial CEDI module designed for high-purity water production in the biopharmaceutical industry, offering superior water quality with low operating costs.

Key Features

Excellent electrical insulation performance
Double O-ring seal ensures leak-free operation
Significantly lower operating costs than traditional ion exchange
No acid, alkali, or neutralization system required
Continuous operation at 7bar (100psi), 45°C (113°F)
Patented "full-filled" concentrate chamber design
Produces water quality equal to or better than mixed bed systems
Continuous water production with stable quality

Technical Specifications

Attribute	Value
Minimum Flow Rate (m³/hr/gpm)	1.36 (6.0)
Design Flow Rate (m³/hr/gpm)	2.8-4.2 (12.5-18.8)
Shipping Weight (kg/lbs)	115 (254)
Operating Weight (kg/lbs)	92 (103)
Recovery Rate	90-95%
DC Voltage	0-400
DC Amperage	1.0-6.0

Module Components

The EDI membrane block removes ions through built-in ion exchange resin, consisting of:

Pure water chamber - Mixed resin layer between anion and cation exchange membranes
Concentrated water chamber - Working interlayer between pure water chambers
Electrode plates - Generate electric field during operation

Applications

Solar photovoltaic industry
Electronics manufacturing
Biopharmaceutical production
Chemical processing
Conventional industrial applications
Power industry

Quality Assurance

CE mark certified, manufactured under ISO 9001 and ISO 14000 standards with strict factory testing.

Operating Environment

Install indoors away from direct sunlight with ambient temperature not exceeding 45°C (113°F) for optimal performance and longevity.

Performance Data

Recovery: 90-95%

DC Voltage: 0-400

DC Amperage: 1.0-6.0

Product Resistivity: Minimum Flow > 17 MW-cm*†, Maximum Flow > 7 MW-cm*†

Silica (SiO2) Removal: 90-99%

Feed Water Specifications

Parameter	Specification
Conductivity	< 40 μS/cm
Temperature	5-45°C (41-113°F)
Inlet Pressure	1.4-6.9 bar (20-100 psig)
Total Chlorine	< 0.05 ppm
pH	4-11

About FG Water Technologies

A high-tech entity specializing in water treatment equipment design, manufacturing, and international shipment, serving various industrial sectors worldwide.

For more information, visit: www.fgwater.com
